- Operation: two stage progressive/modulating electronic;
- Emission class: Low NOx class 3 (<80 mg/kWh) according to EN676
Technologies
WORKING DIAGRAM
TECHNICAL DATA
| Minimum power output (kW) | 750 |
| Maximum power output (kW) | 5800 |
| Fan motor (kW) | 15 |
| Protection level | IP40 |
OTHER AVAILABLE CONFIGURATIONS
- 72H = 72-hour continuous operation without stopping the burner
- FCE = connection arrangement to an external frequency converter
- FCO = on-board frequency converter
- 72H + FCE
- 72H + FCO

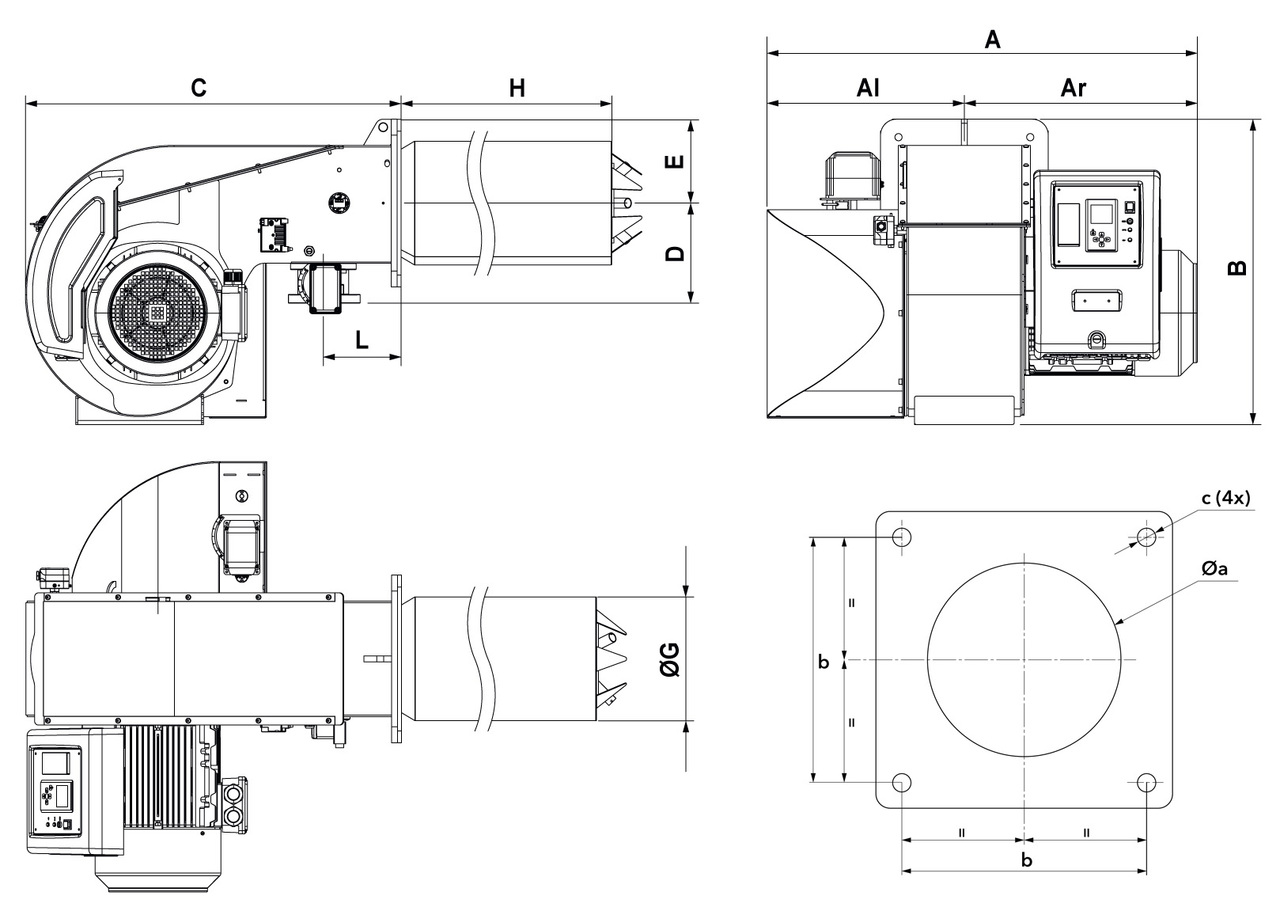

OVERALL DIMENSIONS
| Al | Ar | A | B | C | D | E | G | H | L | Øa | b | c |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 494 | 589 | 1083 | 780 | 943 | 250 | 210 | 323 | KM: 558 / KL: 688 | 195 | 338-348 | 330 | M16 |
