- Operation: two stage progressive/modulating electronic;
- Emission class: Low NOx class 2 (<120 mg/kWh) according to EN676;
Technologies
WORKING DIAGRAM
TECHNICAL DATA
| Minimum power output (kW) | 2000 |
| Maximum power output (kW) | 14000 |
| Fan motor (kW) | 37 |
| Protection level | IP41 |

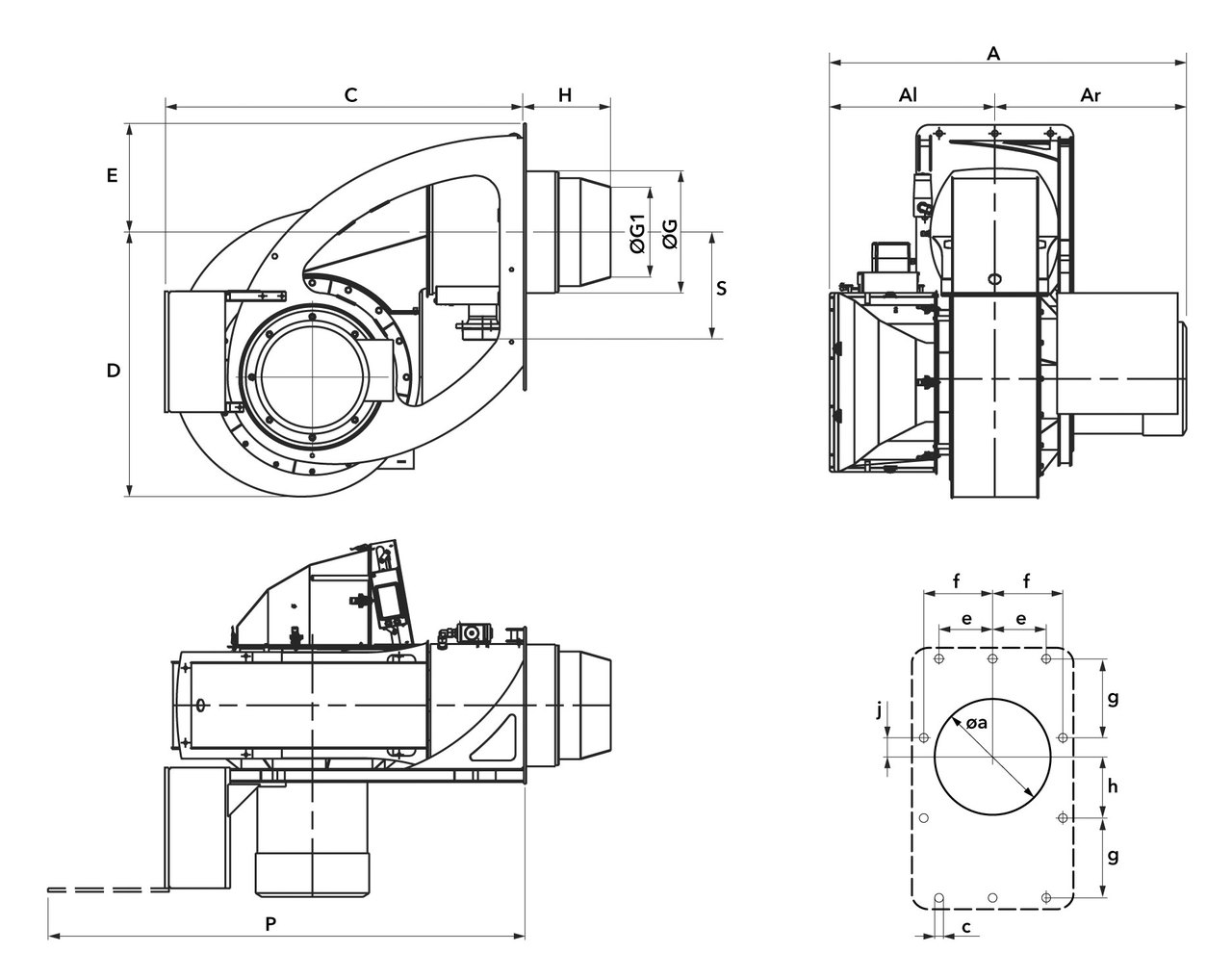

OVERALL DIMENSIONS
| Al | Ar | A | C | D | E | G | G1 | H | P | S | Øa | c | e | f | g | h | j |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 685 | 795 | 1480 | 1500 | 1095 | 450 | 504 | 369 | 350 | 1980 | 446 | 525 | M20 | 230 | 290 | 345 | 275 | 70 |
