- Operation: two stage progressive/modulating electronic;
- Emission class: Ultra Low NOx (<50 mg/kWh)
Technologies
WORKING DIAGRAM
TECHNICAL DATA
| Minimum power output (kW) | 440 |
| Maximum power output (kW) | 4040 |
| Minimum gas pressure (mbar) | 100 |
| Maximum gas pressure (mbar) | 500 |
| Fan motor (kW) | 7.5 |
| Protection level | IP41 |

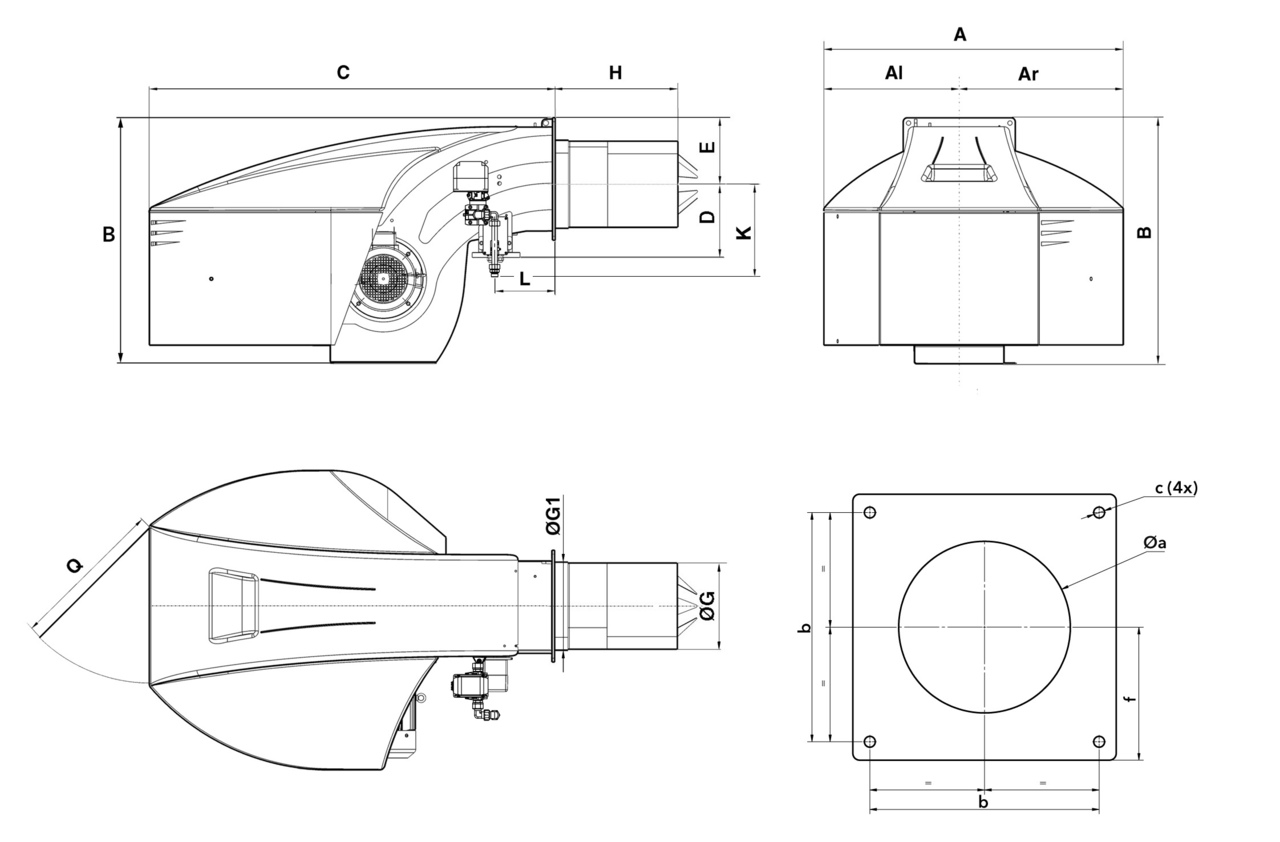

OVERALL DIMENSIONS
| Al | Ar | A | B | C | D | E | G | G1 | H | L | Q | Øa | b | c | f |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 510 | 618 | 1128 | 961 | 1529 | 276 | 255 | 325 | 338 | KN: 420 / KM: 550 / KL: 680 | 233 | 600 | 360-400 | 400 | M16 | 235 |
