- Operation: two stage progressive/modulating electronic;
- Emission class: Low NOx class 3 (<80 mg/kWh) according to EN676
Technologies
WORKING DIAGRAM
TECHNICAL DATA
| Minimum power output (kW) | 510 |
| Maximum power output (kW) | 4290 |
| Minimum gas pressure (mbar) | 75 |
| Maximum gas pressure (mbar) | 500 |
| Fan motor (kW) | 7.5 |
| Protection level | IP41 |
OTHER AVAILABLE CONFIGURATIONS
- Permanent ventilation;
- 60 Hz version;
- Remote display;
- LPG firing;
- Hinge flange

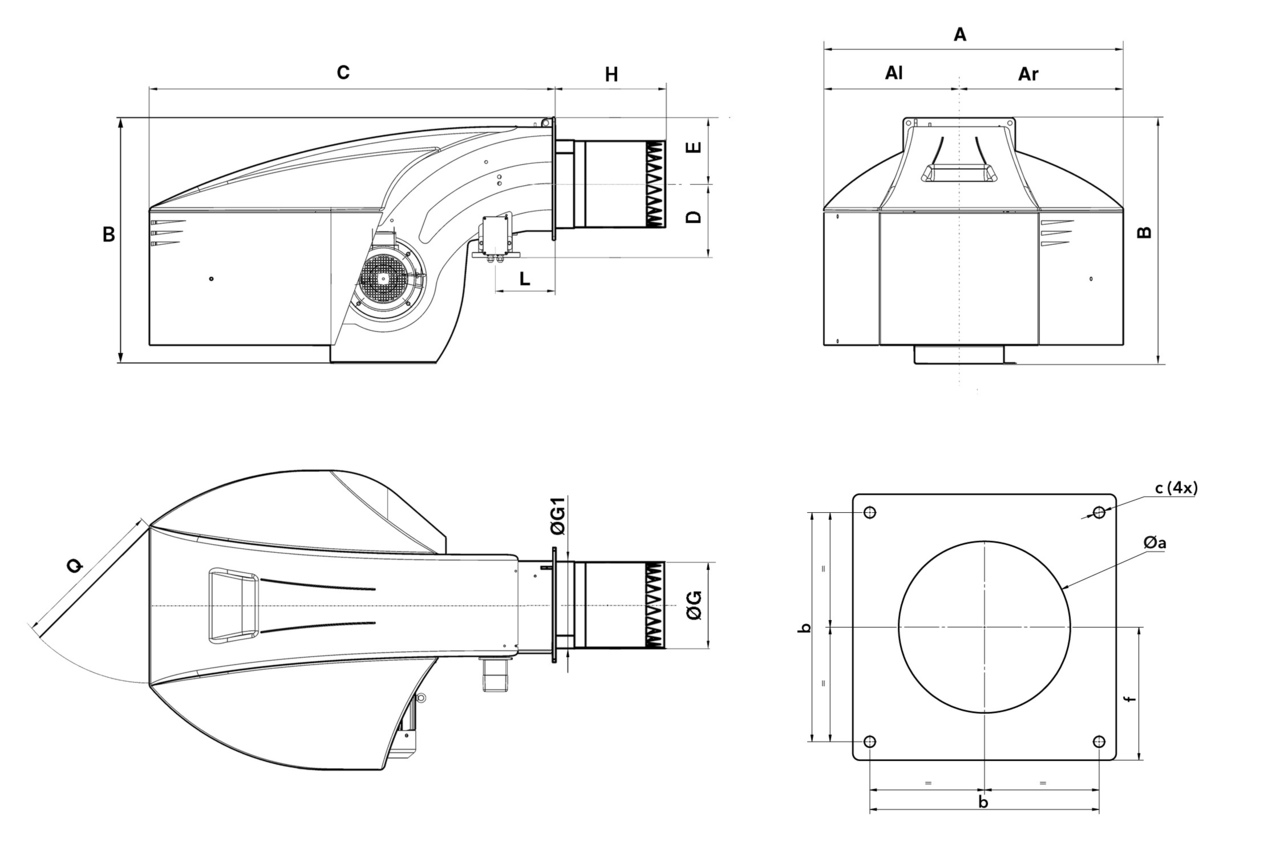

OVERALL DIMENSIONS
| Al | Ar | A | B | C | D | E | G | G1 | H | L | Q | Øa | b | c | f |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 509 | 618 | 1127 | 961 | 1527 | 276 | 255 | 325 | 343 | KN: 420 / KM: 550 / KL: 680 | 223 | 600 | 360-400 | 400 | M16 | 235 |
