- Operation: two stage progressive/modulating mechanical
- Emission class: Low NOx class 3 (<80 mg/kWh) according to EN676
Technologies
WORKING DIAGRAM
TECHNICAL DATA
| Minimum power output (kW) | 400 |
| Maximum power output (kW) | 3100 |
| Fan motor (kW) | 5.5 |
| Protection level | IP40 |
OTHER AVAILABLE CONFIGURATIONS
- 72H = 72-hour continuous operation without stopping the burner

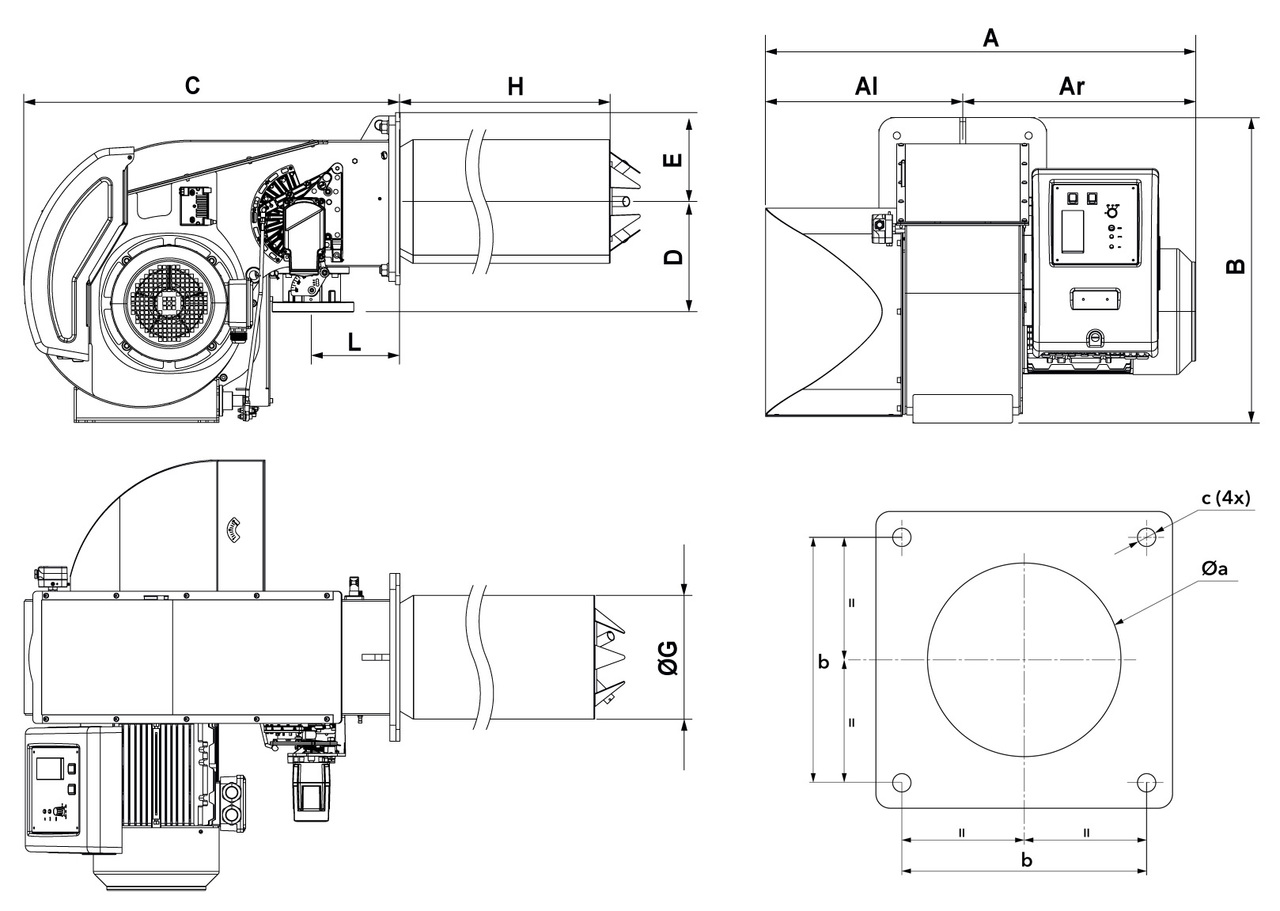

OVERALL DIMENSIONS
| Al | Ar | A | B | C | D | E | G | H | L | Øa | b | c |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 387 | 488 | 875 | 684 | 828 | 250 | 190 | 263 | KM: 550 / KL: 650 | 195 | 278-288 | 315 | M16 |
